Details

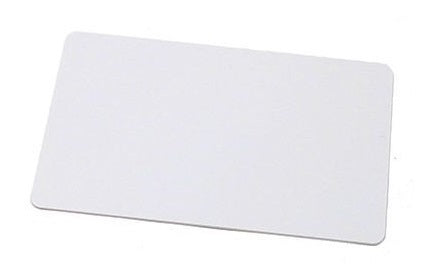

The Legic advant ATC ID card is the modern evolution of the proven Legic prime technology and offers enhanced security features with full backward compatibility.
The advantages of Legic technology include:
1. Legic systems and cards are always secured and initialized with associated authentication media (IAM card, GAM card, etc.). Without these separate authentication media, it is completely impossible to unauthorizedly create a functional ID card. As long as the authentication media are stored securely in a safe, no one can compromise the security of your premises.
2. The available 4 KB memory can either be fully reserved for one application or divided into up to 127 independent segments. Each segment is protected by individual authentication media, allowing different system integrators to securely use the same medium in parallel.
3. Legic advant is an established open standard. Choosing Legic media does not bind you to a specific system integrator. Almost all well-known system integrators in Germany support Legic technology.
General: The Legic advant ATC4096 ID card is a contactless smart card (RFID technology) that does not require a battery. The chip and antenna are fully embedded within the card, providing optimal protection from external influences. Power supply and data transfer occur wirelessly via radio waves at a constant frequency of 13.56 MHz. The card only needs to be held within the near field of the reader – direct contact is not required.
Therefore, we only offer high-quality cards.
To meet special requirements such as heat or mechanical stress, we can also offer cards made of PET / PC or hybrid materials. The Legic ID card has a significantly lower failure rate compared to other cards due to considerable advancements in development.
Application area: Even in harsh environmental conditions (moisture, dirt, mechanical influences), the Legic advant ID card provides reliable service. Transactions are fast and convenient. Up to 127 different applications such as operational data acquisition (ODA), parking management, access control, cashless payment, or biometric high-security applications are possible. For vandalism prevention, reader units can be installed invisibly in masonry.
To prevent vandalism, the read/write unit can be installed (invisibly) directly in the masonry.
Encoding specifications: An essential security feature is "baptism." Here, baptism data stored in the read/write unit is compared with the protection data of the medium. Only if they match can the medium be read or written. With an IAM card, up to 32 baptism data records can be loaded into a reader. Individual baptism data records can be removed again with baptism deletion cards.
The cards are available segmented and unsegmented, but can also be combined.
Design / Print: We design and produce your ID card design according to individual specifications. The ID card can be printed on the front and back in offset or screen printing, in one or multiple colors. Personalization (data and photo) is possible digitally on-site or as a service (also online). Combinations with other encoding types are feasible.
Combinations with other encoding types (e.g., magnetic stripe, barcode, inductive) are possible.
Material: Solid plastic
Format: 86x54x0.84 mm (standard version)
Technology: Chip type: Legic advant ATC4096
Storage capacity: 4096 Byte E²PROM
Operating frequency: approx. 13.56 MHz
Range: Up to 10 cm (reader-dependent)
Transfer speed: less than 100 ms
Chip lifespan: 500,000 write cycles
Data retention: at least 15 years
Security: 128-bit AES encryption, up to 32 baptism data records
